Our Joist and Deck Detailing Services consist of preparing complete and accurate drawings & Bill of materials as per client requirement based on Contract Drawings. The service includes erection plans, sections and details for the proper and safe installation of the steel joist girders, open web steel joist, bridging, steel deck, and accessories.
Steel Joists are key component to roofing and flooring systems. We design, and detail a full range of standard steel joists, composite joists, and joist girders that comply with the specifications of the Steel Joist Institute.

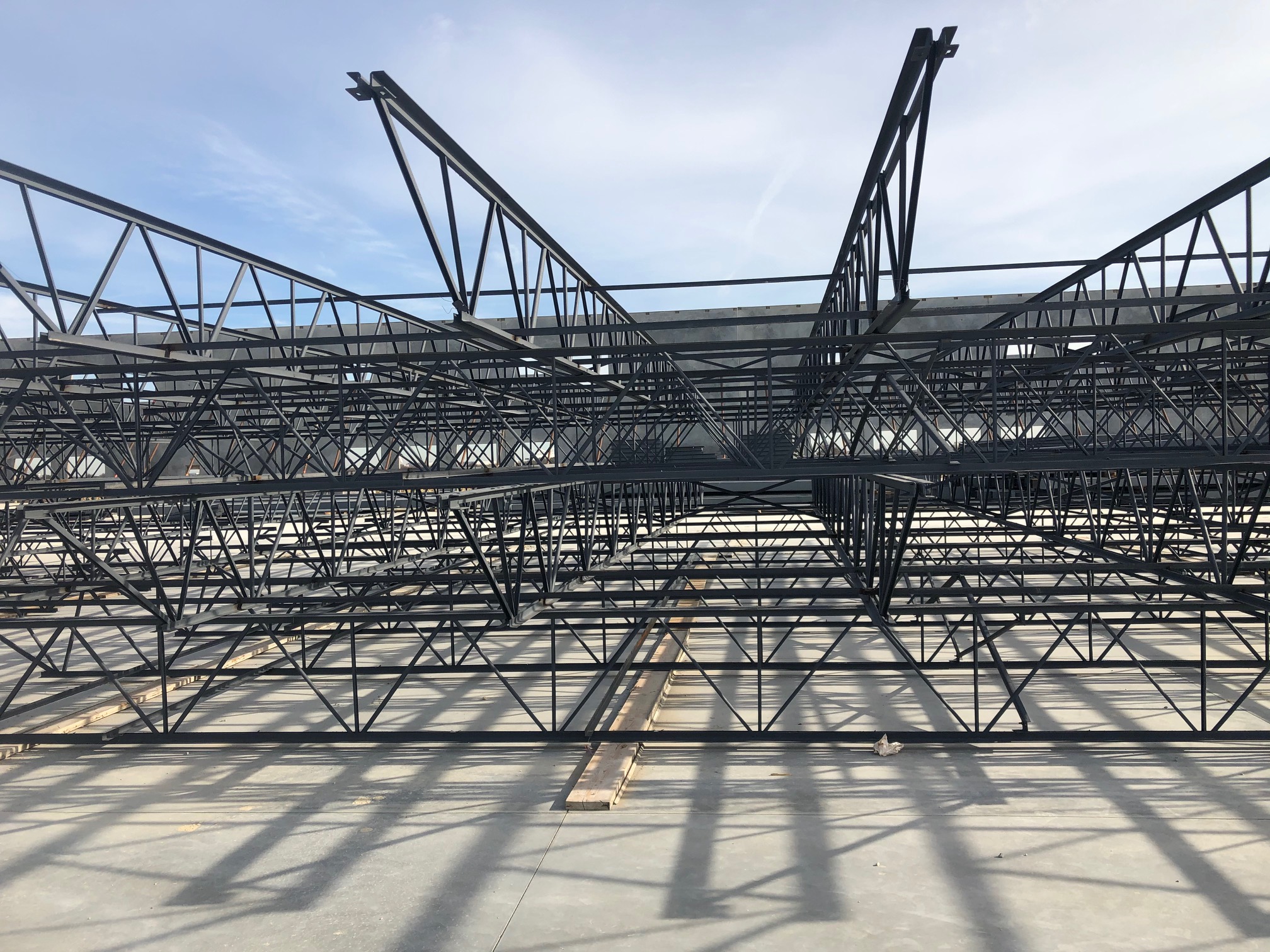

Open Web Steel Joists are light in weight they possess an exceptionally high strength-to-weight ratio in comparison with other building materials. Coupled with their low price per pound, they contribute significantly to lower building costs. An additional economy stemming from their lightweight is the fact that the structural materials supporting the joists, such as beams and Joist Girders, columns, and the foundations themselves, can therefore be lighter, thus leading to even greater economies. They are capable of supporting larger floor or roof loading due to the attachment of the concrete slab to the top chord of the composite joist.
Joist Girders are open web steel trusses used as primary framing members. They are designed as simple spans supporting equally spaced concentrated loads for a floor or roof system. They have been designed to allow for a growing need for longer-span primary members, coupled with a need for more efficient steel usage.
Roof Deck

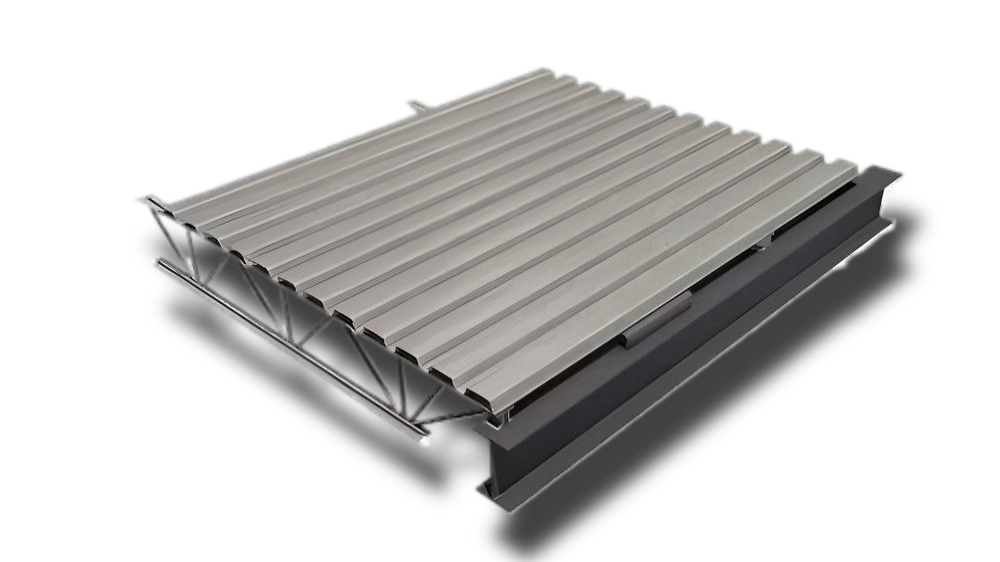

Roof Deck is ribbed steel used for the support of roofing materials. This deck is available in a 1½-inch profile with a coverage
width of 36 inches. The decking is available in both a 2½-inch wide rib (Type B) and a 17/8-inch intermediate rib (Type F). Type B decking is for use as a component in Class 1-60, 1-75 and 1-90 wind uplift.
This product is offered in 18, 20, and 22-gage thickness. Decking that is 20 & 22-gage can be slot-vented. Finishing options include a G60 or G90 galvanized finish, or we can apply gray or white primer.
Non-Composite Floor Deck

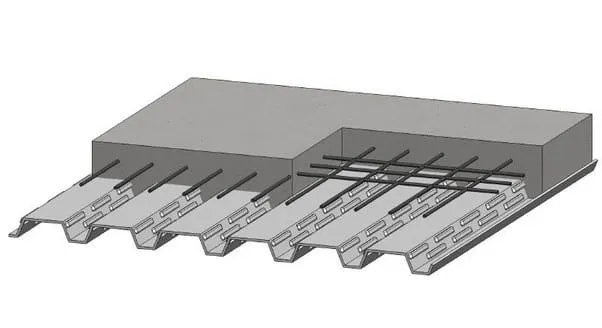

Non-Composite Floor Deck is steel deck used as a form for reinforced concrete slabs for flooring on multi-level structures. This deck is available in 9/16-inch and 15/16-inch profiles with a coverage width of 30 inches.
